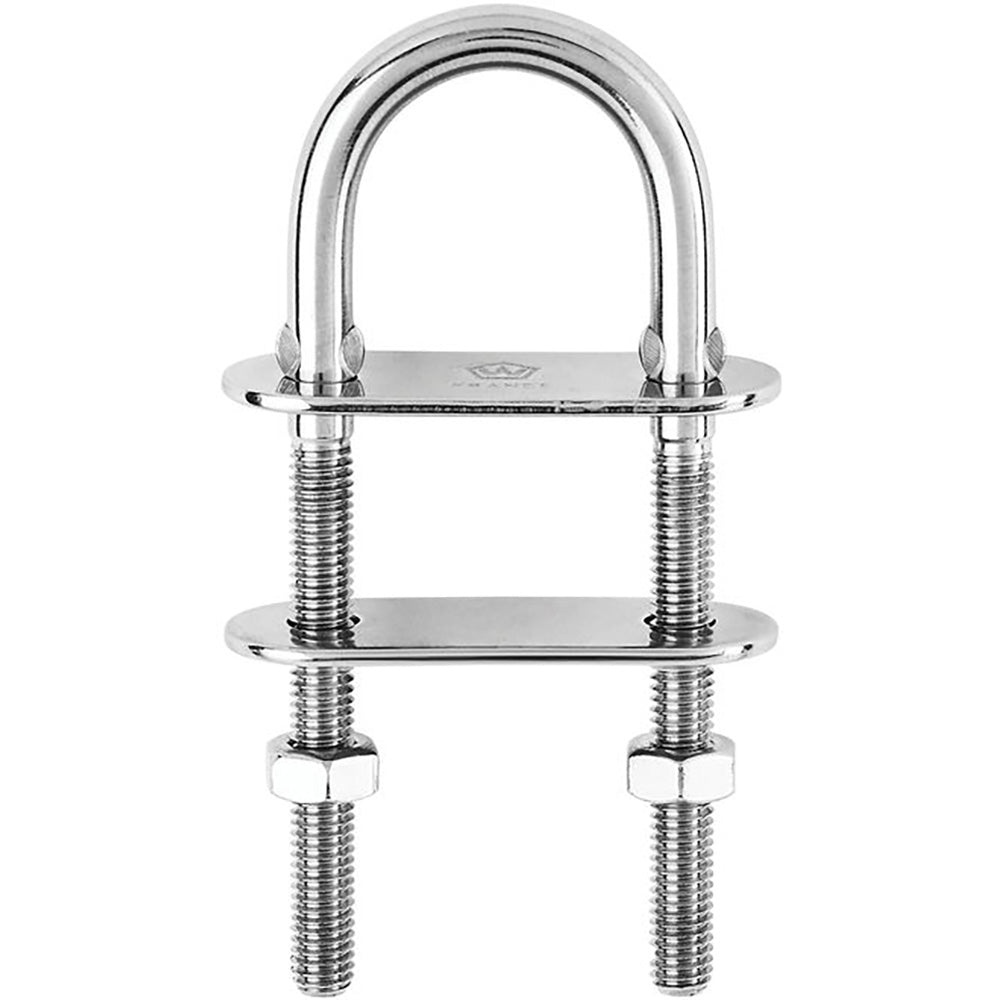

Wichard U-Bolt Pad Eye - 4mm Diameter - 5/32" [06511]
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders placed before 3 PM EST ship the same day
We offer multiple shipping options to ensure you get the part you need at a discount.
Best Way -$11.97
Ground -$14.69
2nd Day Air -$25.89
Overnight -$59.99
In addition, we can ship on your account or via a preferred method upon request.
Wichard U-Bolt Pad Eye - 4mm Diameter - 5/32" [06511]
U-Bolt Pad Eye - 4mm Diameter - 5/32"
Features:
- Fully drop forged product with high-quality stainless steel
- Outstanding working and breaking loads
- For any kind of fastening applications (shrouds, lifelines, blocks...)
- Delivered with bolts and counter-plate
- Max tightening torque: 2.3 Nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 1050 / (kg) 480
- Breaking load: (lb) 2200 / (kg) 1000
- Weight: (lb) 0.049 / (g) 22

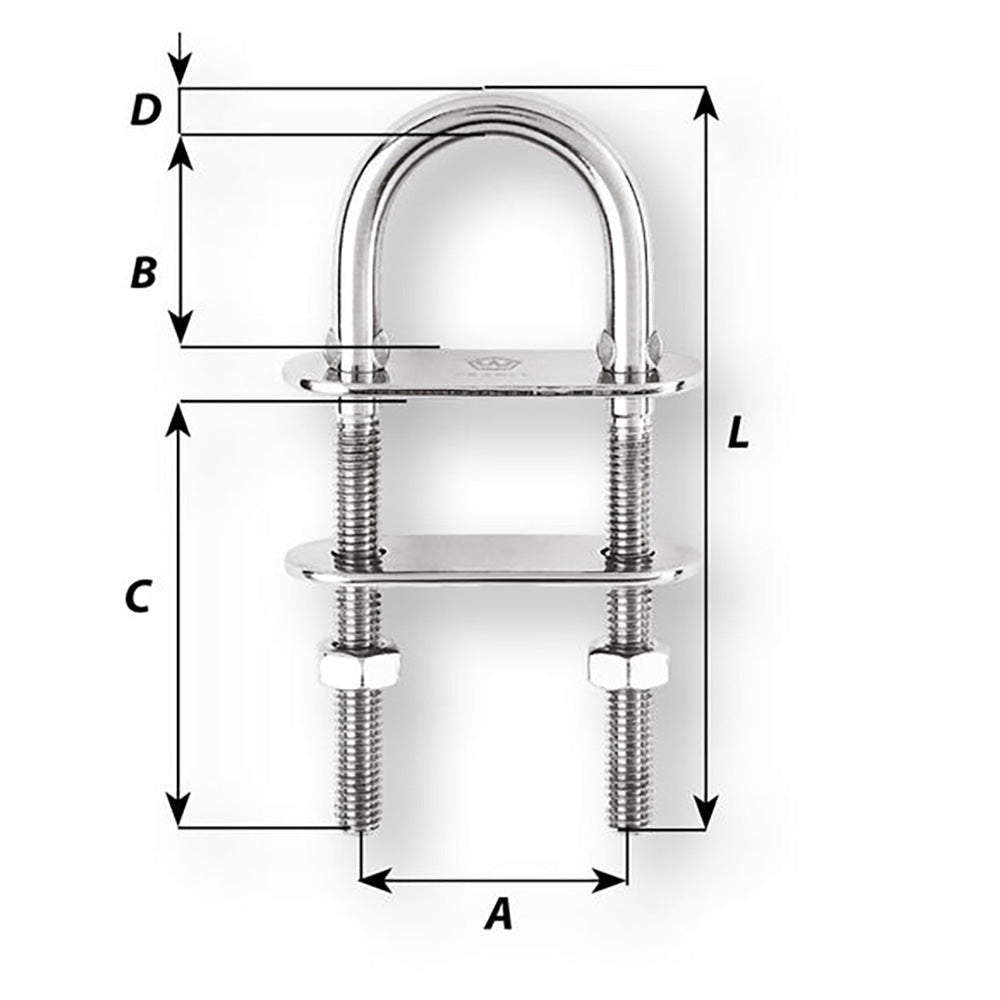

Dimensions:
- A: (inch) 15/16" / (mm) 24
- B: (inch) 53/64" / (mm) 21
- C: (inch) 1 1/16" / (mm) 27
- D diameter: (inch) 5/32" / (mm) 4
- Length: (inch) 1 31/32" / (mm) 50
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
