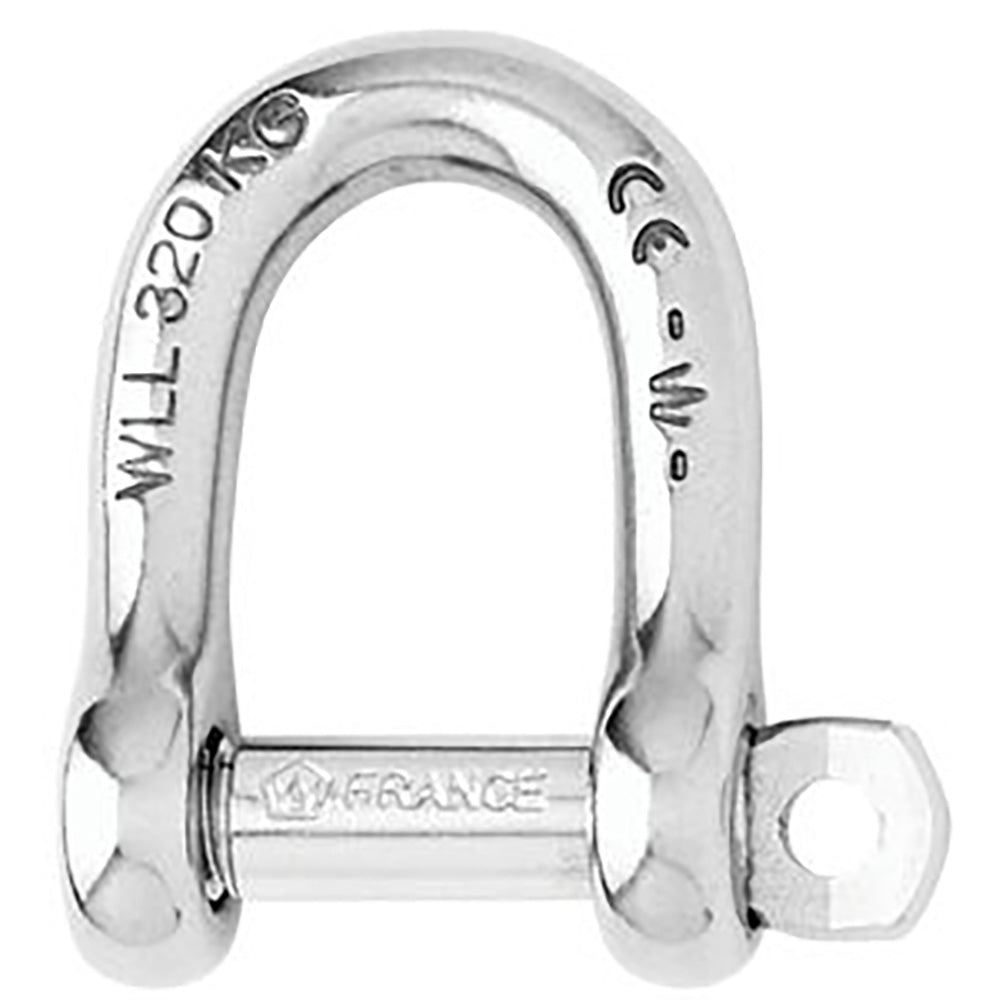

Wichard Not Self-Locking D Shackle - 14mm Diameter - 9/16" [01207]
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders placed before 3 PM EST ship the same day
We offer multiple shipping options to ensure you get the part you need at a discount.
Best Way -$11.97
Ground -$14.69
2nd Day Air -$25.89
Overnight -$59.99
In addition, we can ship on your account or via a preferred method upon request.
Wichard Not Self-Locking D Shackle - 14mm Diameter - 9/16" [01...
Not Self-Locking D Shackle - 14mm Diameter - 9/16"
Features:
- D shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
- Part #01207 is not a self-locking D shackle
Applications:
- Standard applications of the shackle
- Attachment applications: blocks, head
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 5290 / (kg) 2400
- WLL: (lb) 3520 / (kg) 1600
- Breaking load: (lb) 17630 / (kg) 8000
- Weight: (lb) 0.688 / (g) 312

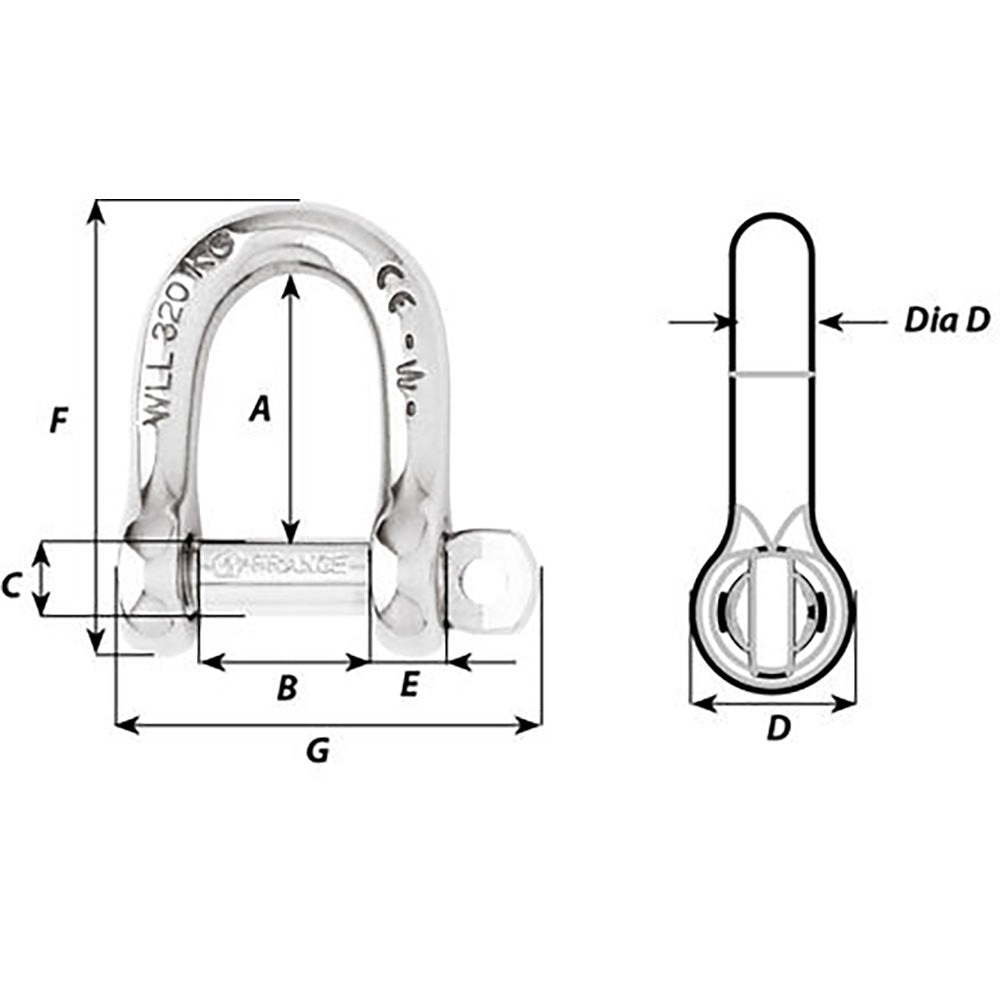

Dimensions:
- A: (inch) 1 27/32" / (mm) 47
- B: (inch) 1 7/64" / (mm) 28
- C: (inch) 35/64" / (mm) 14
- D: (inch) 1 7/64" / (mm) 28
- D diameter: (inch) 35/64" / (mm) 14
- E: (inch) 33/64" / (mm) 13
- F: (inch) 3 15/64" / (mm) 82
- G: (inch) 3 5/64" / (mm) 78
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
Quick Guide (pdf)
