Wichard HR Quick Release Snap Shackle With Large Bail -160mm Length - 6-19/64" [02778]
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders placed before 3 PM EST ship the same day
We offer multiple shipping options to ensure you get the part you need at a discount.
Best Way -$11.97
Ground -$14.69
2nd Day Air -$25.89
Overnight -$59.99
In addition, we can ship on your account or via a preferred method upon request.
Wichard HR Quick Release Snap Shackle With Large Bail -160mm Length...

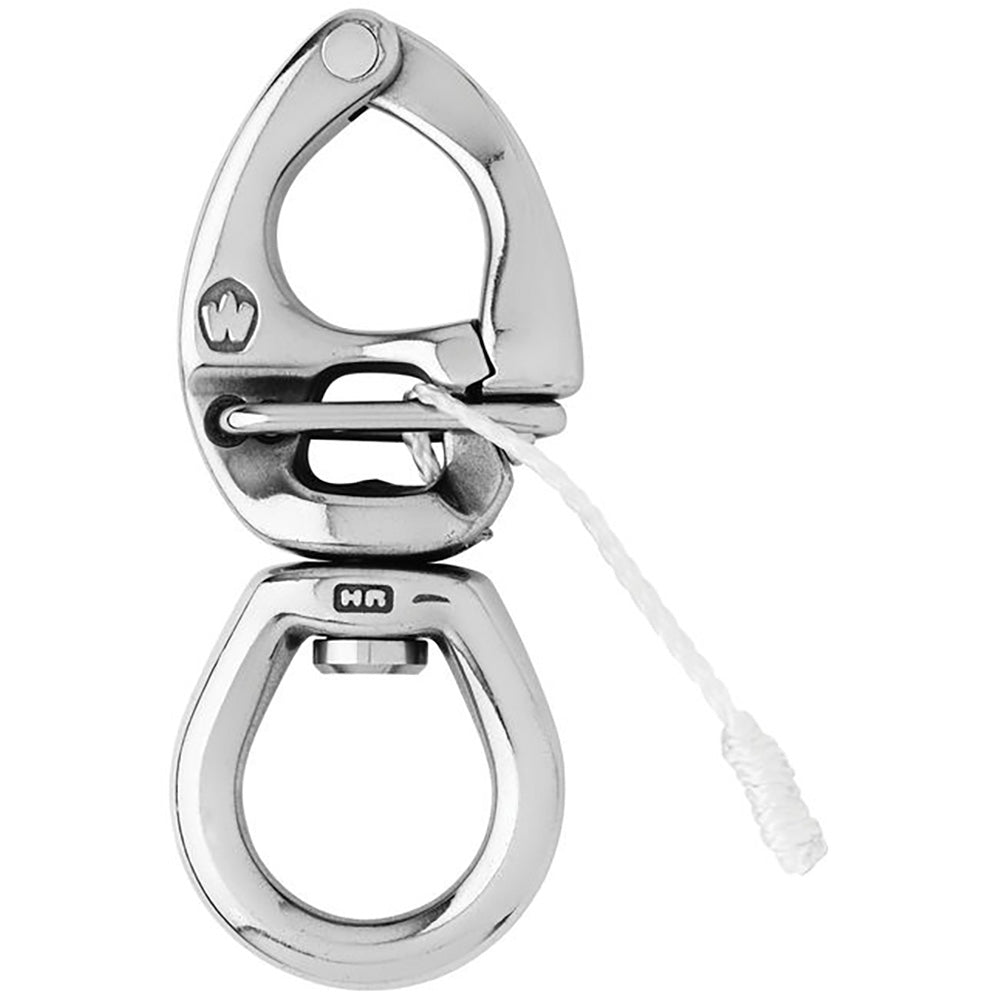

HR Quick Release Snap Shackle With Large Bail -160mm Length - 6-19/64"
Features:
- HR forged (17.4 PH) quick-release snap shackle with large bail
- The opening is made by pulling the lanyard
- Perfect to attach several lines (spinnaker sheets...)
- Outstanding working and breaking loads
- Free rotation of the snap shackle thanks to the swivel
Applications:
- For spinnaker operations
- Perfect to attach several lines: spinnaker sheets...
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 11460 / (kg) 5200
- Breaking load: (lb) 17630 / (kg) 8000
- Weight: (lb)1.362 / (g) 618

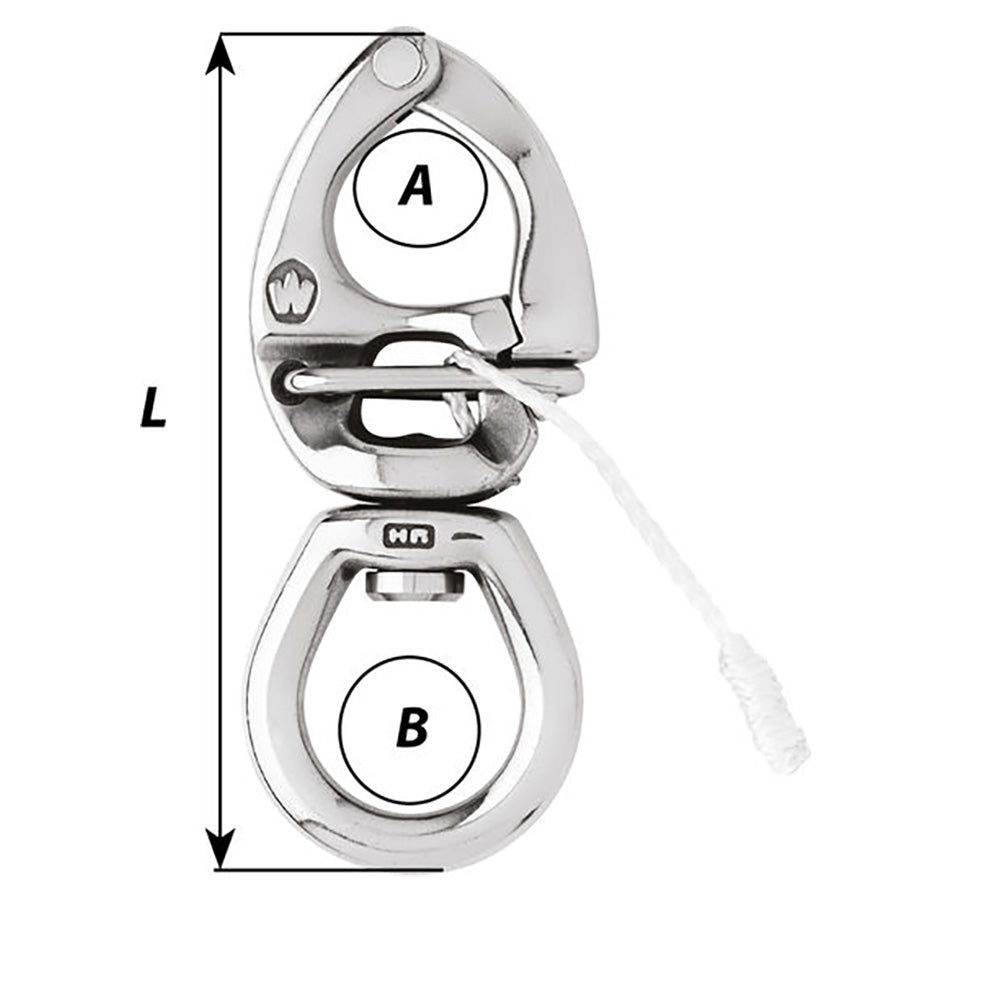

Dimensions:
- A: (inch) 1 11/32" / (mm) 34
- B: (inch) 1 39/64" / (mm) 41
- Length: (inch) 6 19/64" / (mm) 160
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
Quick Guide (pdf)
