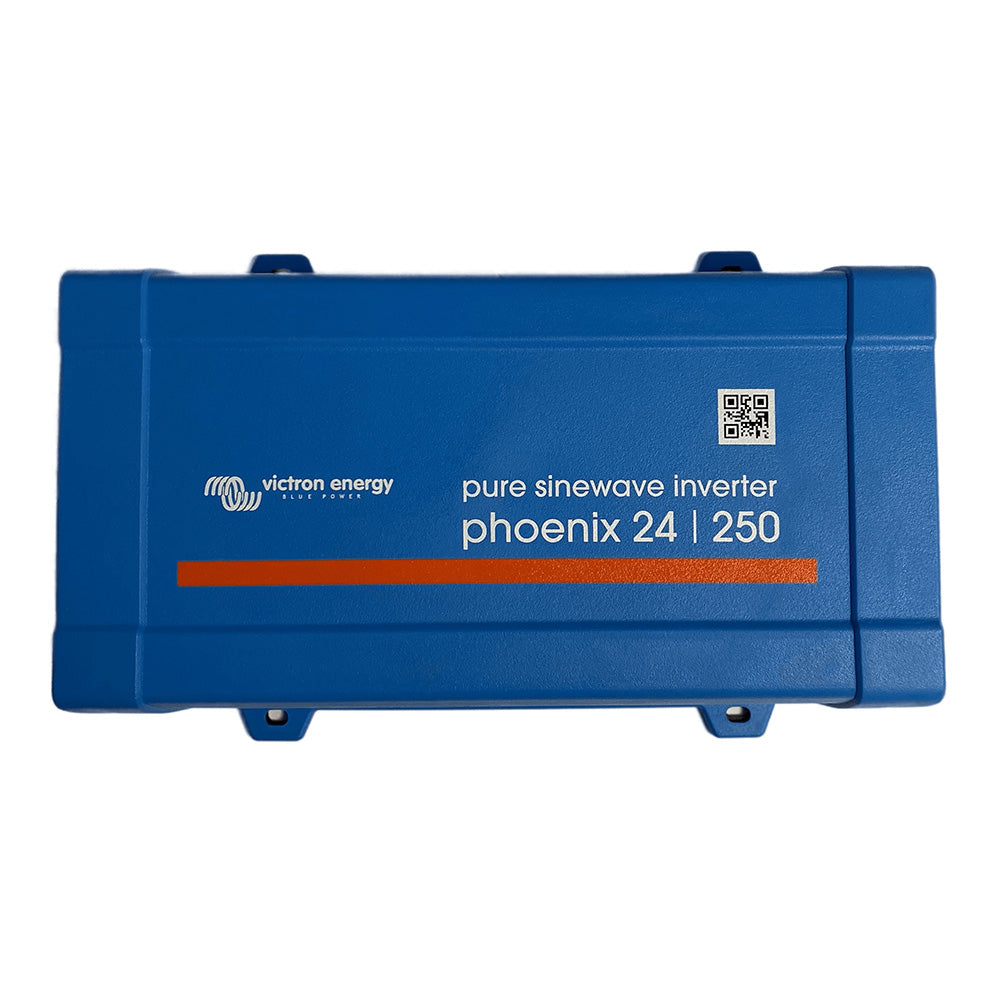

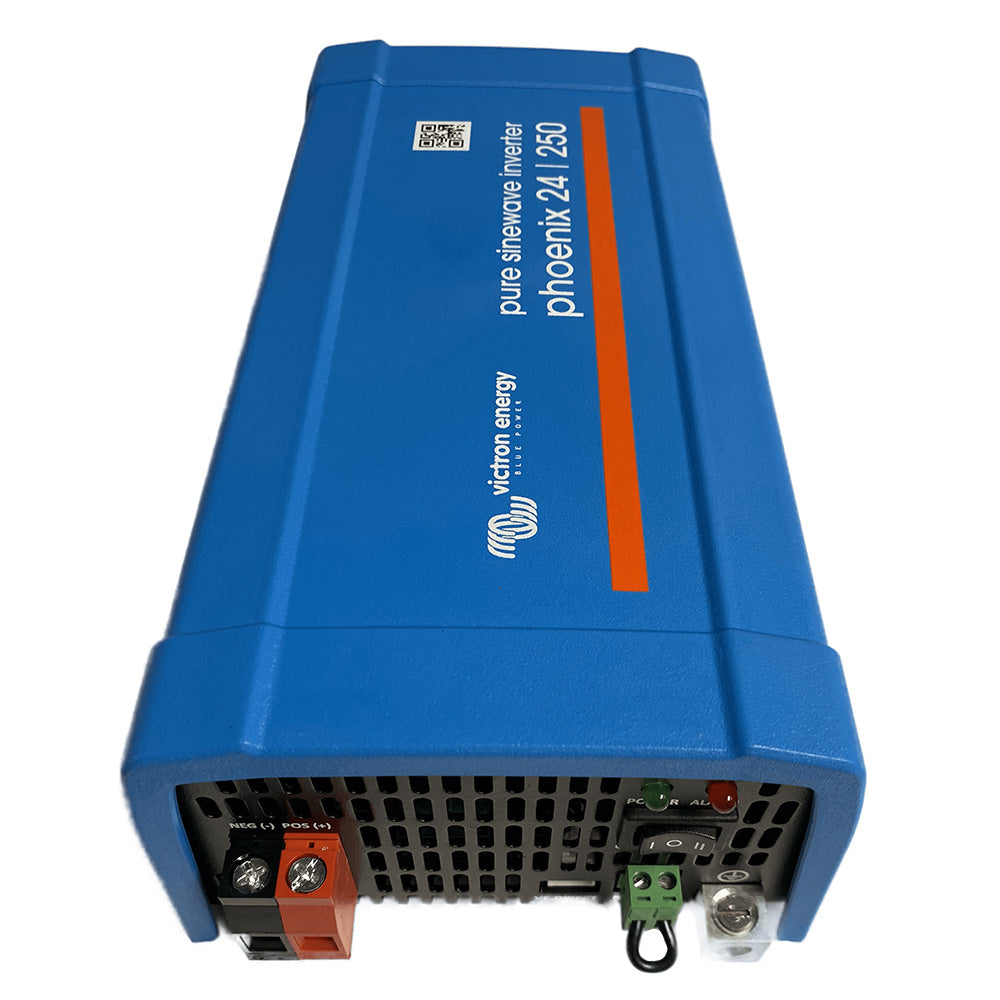

Victron Phoenix Inverter 24VDC - 250VA - 120VAC
Inverter 24VDC - 250VA - 120VAC - VE.Direct - NEMA 5-15R
Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V, or 48VDC.Â
The VE.Direct port can be connected to:
- A computer (VE.Direct to USB interface cable needed)
- Apple and Android smartphones, tablets, MacBook, and other devices (VE.Direct Bluetooth Smart dongle needed)
Fully configurable:
- Low battery voltage alarm trip and reset levels
- Low battery voltage cut-off and restart levels
- Dynamic cut-off: load-dependent cut-off level
- Output voltage 210 - 245V
- Frequency 50 Hz or 60 Hz
- ECO mode on/off and ECO mode sense level
Monitoring:
- In- and output voltage, % load, and alarms
- Please get in touch with your dealer for any returns, repairs, or support issues related to this product.
Phoenix Inverter 24/250 Specifications:
- Continuous Power at 25°C: 250VA
- Continuous Power at 25°C / 40°C: 200 / 175WÂ
- Peak Power: 400WÂ
- Output AC Voltage / Frequency (adjustable): 120VAC +/- 3%
- Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V
- DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V
- Dynamic (Load Dependent) DC low shut down (fully configurable): Dynamic cut-off
- DC Low Restart and Alarm (adjustable): 10,9 / 21,8 / 43,6V
- Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V
- Maximum Efficiency: 87 / 88 / 88%Â
- Zero-Load Power: 4,2 / 5,2 / 7,9WÂ
- Default Zero-Load Power in ECO Mode (default retry interval: 2,5 s, adjustable): 0,8 / 1,3 / 2,5W
- ECO Mode Stop and Start Power Setting: Adjustable
- Protection: a - f
- Operating temperature Range: -40 to +65°C (fan-assisted cooling) / Derate 1,25% per °C above 40°C
- Humidity (non-condensing): Max 95%
Enclosure:
- Material & Color: Steel chassis and plastic cover (blue Ral 5012)
- Battery-Connection: Screw terminals
- Maximum Cable cross-Section 10mm^2 / AWG8Â
- Standard AC outlets 230V: Schuko (CEE 7/4), IEC-320 (male plug included), UK (BS 1363), AU/NZ (AS/NZS 3112), 120V: Nema 5-15R, GFCI
- Protection Category: IP 21
- Weight: 2,4kg / 5,3lbs
- Dimensions (h x w x d, mm) / (h x w x d, inch): 86 x 165 x 260 mm / 3.4 x 6.5 x 10.2 in.
Accessories:
- Remote On-Off: Yes
- Automatic Transfer Switch: Filax
Quick Guide (pdf)
