Raymarine B60-20, 20 Degree Tilted Element Transducer (f/DSM300 / D...
B60 Tilted Element 20°
20° titled version is designed for 16° - 24° deadrise angles
For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300

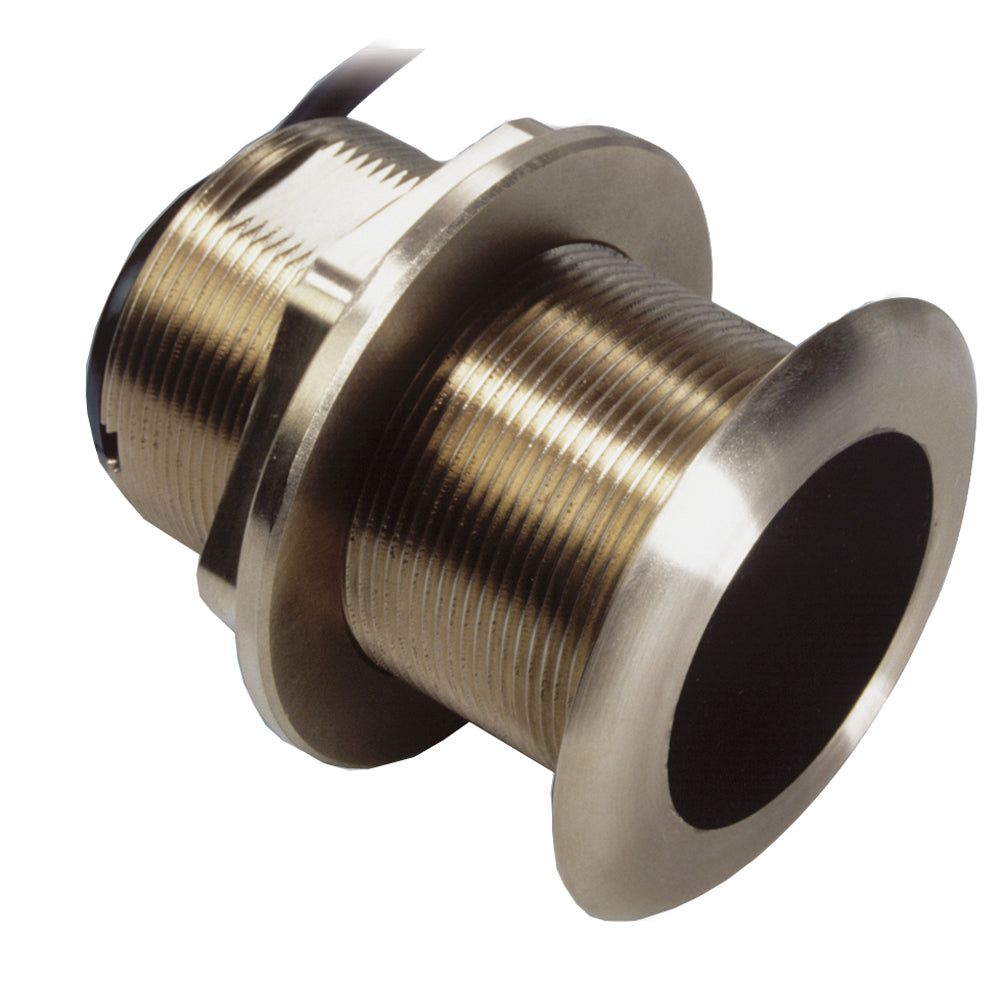

The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- Bronze
Specifications:
- Chirp: No
- Cable Length (Feet): 33'
- Temperature: Yes
- Speed Included: No
- Mounting Style: Thru-Hull
- Imagining: Standard
- Box Dimensions: 4"H x 8"W x 10"L WT: 4.9 lbs
- UPC: 723193660850
