Pacer Duplex 2 Conductor Cable (250' 16/2 AWG)

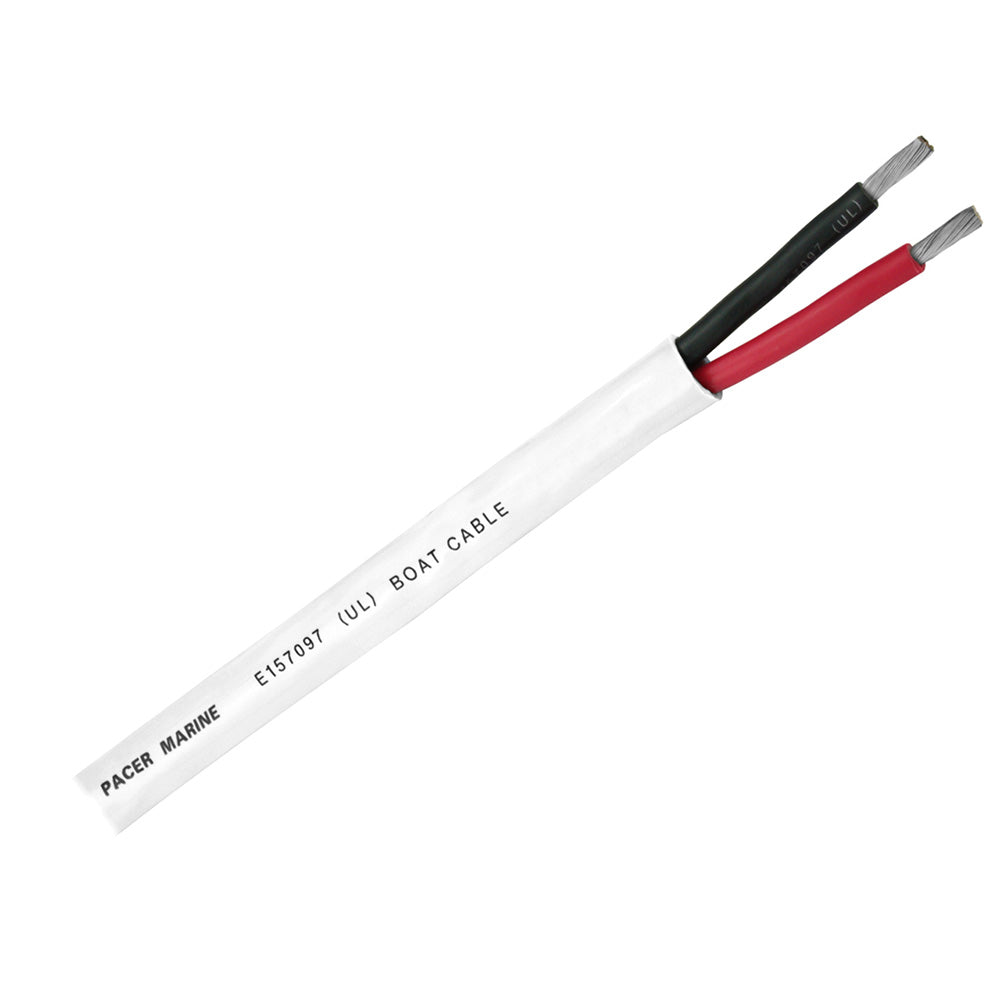

Duplex 2 Conductor Cable - 250' - 16/2 AWG - Red, Black
Duplex boat cable is a two-conductor cable designed with corrosion-resistant conductors and durable insulation to withstand the harsh marine environment. Pacer’s duplex boat cable is designed with flexibility and longevity in mind. We know that wiring on a boat often occurs in areas with little space to maneuver. That is why we focused on creating a highly flexible boat cable without compromising its durability.
Features:
- 16 AWG duplex boat cable
- 250 ft. of cable
- No. of Conductors: 2
- Stranded, tinned copper conductors
- Annealed Finely Stranded Tinned Copper ASTM B172 Class K
- Built for durability, flexibility, and longevity in the harshest marine environments
- So flexible that you can tie it into a knot without compromising any of its qualities
- Proprietary insulation ensures the highest level of protection available
- Ease of installation and the longevity of its design have helped solidify this boat cable as the choice of boating professionals
Specifications:
- Conductor Colors: Black & Red
- Conductor Stranding: 26/.0100
- Jacket Color: White
- Jacket Thickness (inch): 2 conductors @ 0.035"
- Nom. Cable O.D.(inch): 2 conductors @ 0.200" x 0.330"
Characteristics:
- Conductor: Annealed Fine Stranded Tinned Copper
- Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
- Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
- Voltage Rating: 600 V
- Resistant to: acid, alkali, abrasion, flame, gasoline, oil, and moisture
Applications:
- Two conductor boat cable is a durable product for use in DC circuits as well as low voltage AC applications
Compliances:
- UL Standard 1426
- RoHS Compliant
- ABYC: E-11.14
- Coast Guard: 33 CFR part 183
- UL compliant
Specifications:
- Color: Black/Red
- Gauge: 16/2 AWG
- Length (Feet): 250'
- Box Dimensions: 9"H x 11"W x 11"L WT: 16.8 lbs
