Newmar PT-24-95U Battery Charger

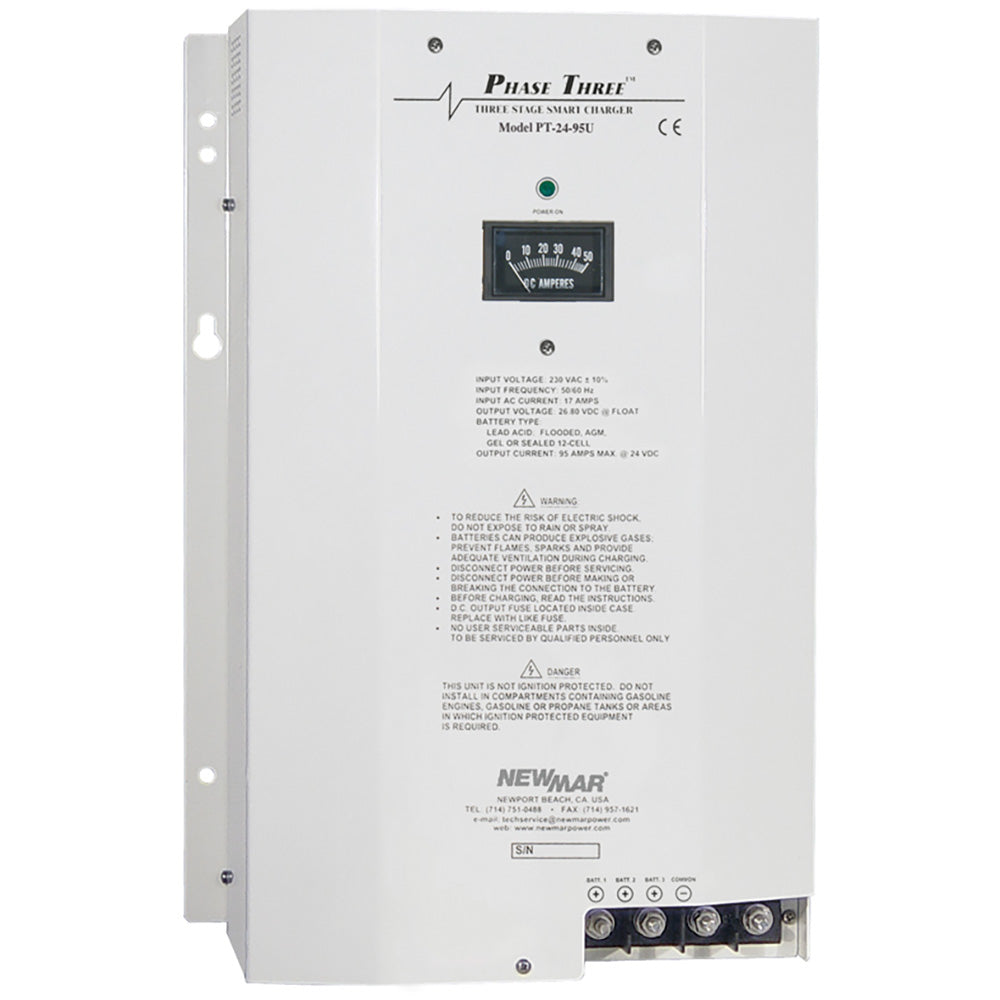

PT-24-95U Battery Charger

“Smart” marine battery charging technology for 24-volt systems aboard workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.

A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.

Features:

• 24-volt model
• “Smart” circuitry provides three-stage charging – bulk, absorption, float
• Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages
• Multiple isolated output banks; ammeter indicates total output current
• The optional sensor adjusts output voltage based on battery temperature
• Current limiting prevents damage from overloading
• Use as a power supply; can power loads without a battery in line
• Built to last – rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry
• Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield
• Install in conjunction with PT-MCU for additional control and monitoring
• ABS-type approval for battery charging and power supplies

Specifications:

• Input VAC (50-60 Hz.): 90-264
• Input Amps @ Full Load: @ 115 VAC: 26, @ 230 VAC: 14
• Power Factor: .98@115V and .95@230V
• Max Output Amps: 95
• Output Banks: 3
• Battery Capacity (Amp-Hours): 180 – 950
• Operating Temp. Rating Reference: T-5
• Case Size Reference: A-5
• Case Size (H x W x D): 17.5E x 12 x 7.2E inches (44.5E x 30.5 x 18.3E centimeters) *Note with Dripshield installed E add 2” (5.08 cm) to height and 1” (2.54 cm) to depth
• Weight Lbs./Kg: 24.5/11
• Optional Temp. Sensor Model: TCS-12/24
• Remote Panel Model: RP
• Compliance Reference: EN, CE, ABS

Temperature Rating References:

• Temperature: -20 degrees C to +70 degrees C
• Derate Linearly From 100% @ 50 degrees C to 50% @ 70 degrees C

Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation):

• Gel-Cell: 28.0 VDC Charge @ 50% load and 27.2 VDC Float @ .5 amp load
• Flooded/AGM: 28.4 VDC Charge @ 50% load and 26.8 VDC Float @ .5 amp load

Compliance References:

• UL: UL 1950 (per DNB report)
• CG: USCG CFR 183.410 (Ignition protected)
• EN: EN 60335-1
• CE: Carries the CE mark
• ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13.

Options:

• Remote Panel, model RP, for use with all models except PT-24-20U, PT-24-60, and PT-32-25 (LEDs indicate charger output stage. Manual re-initialization of three-stage charge cycle. With 25′ of cable. Panel dimensions: 3″ H x 4.75″ W)

Specifications:

• Charger Input - Voltage: 115/230v
• Charger Output - Amps: 95a
• Charger Output Voltage: 24v
• Charging Banks: 3
• Inverter Input Voltage: 115/230v
• Inverter Output Voltage: 24v
• Outlet Qty: Hardwire
• Portable: No
• Box Dimensions: 12"H x 17"W x 26"L WT: 31.5 lbs
