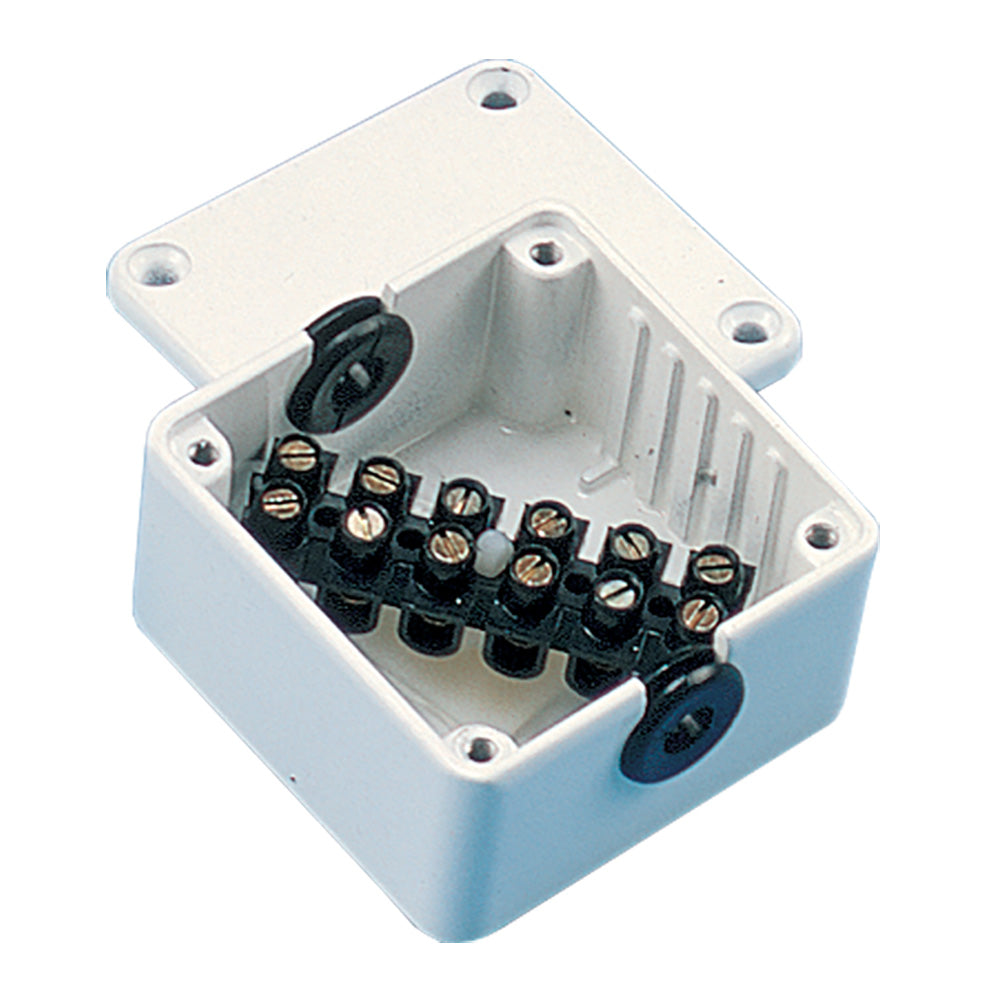

Newmar BX-1 Junction Box
BX-1 Junction Box
This BX Series splashproof box provides secure, protected wiring connections in wheelhouses or below decks and engine rooms.
Features:
- IP rating 54 – “Splashproof”
- Rugged cast aluminum box with white enamel finish
- Metal box reduces electrical interference
- Easy wiring access through multiple grommeted cable entries
- Supplied with high-quality connector strips – secure wires with compression fittings – no terminals required – see matrix below for connector strips specifications per box
Specifications:
- Number of Connector Strips: 1
- Positions per Strip: 6
- Max Wire Gauge: 16
- Max Amps (per position): 6
- Cable Entries: 2
- Cable Diameter: 0.25 in.
- Box Size: 2 x 2 x 1.2 in.
- Box Size: 5.1 x 5.1 x 3.1 cm
Specifications:
- Type: Junction Box
- Box Dimensions: 2"H x 4"W x 6"L WT: 0.35 lbs
