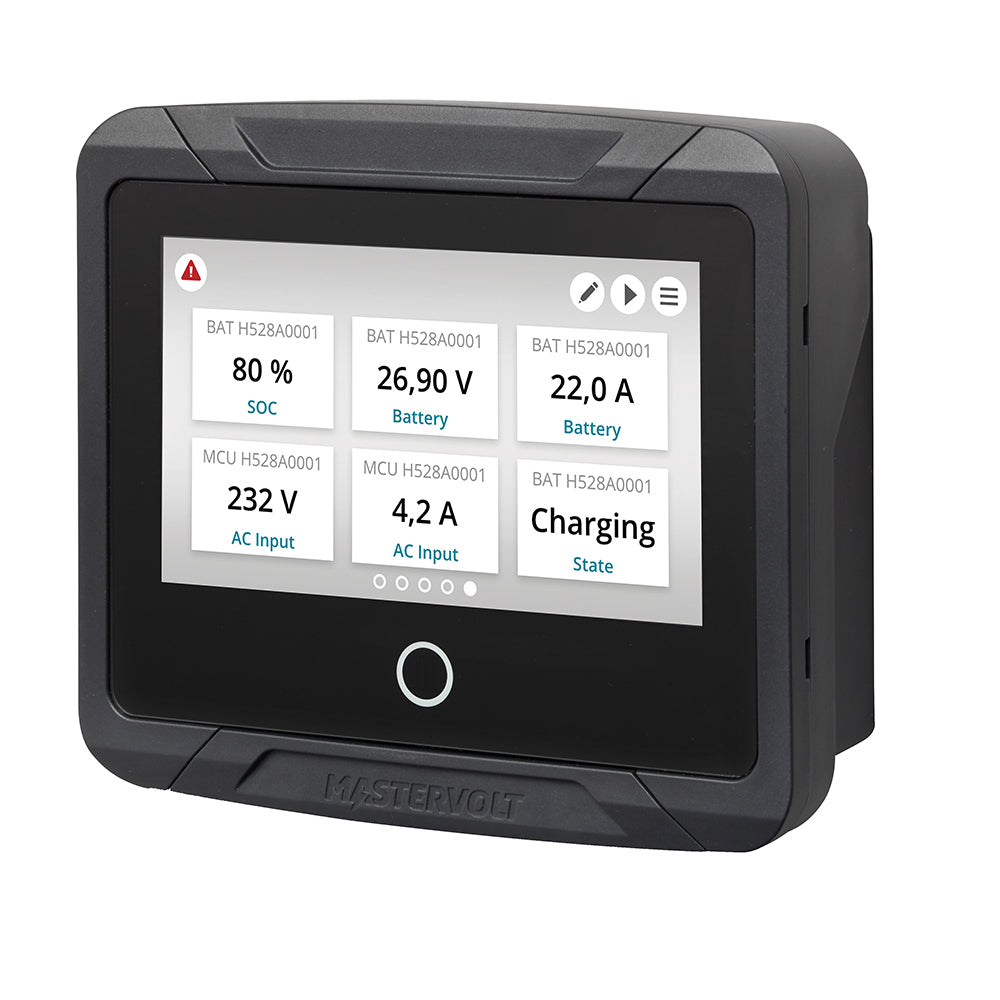

EasyView 5
Waterproof system monitor with daylight display and intuitive touch control.
Controlling your Mastervolt system has never been easier. The EasyView 5 features a sharp, waterproof display which is clearly readable in daylight. Thanks to the color touch screen and multi-language menu, the display is a pleasure to operate. Easily customizable favorite pages show all relevant system information at a glance.
Features
- Water proof, daylight readable color display
- Intuitive touch control
- Customizable favorite pages
- Log book for warnings and alarms
- Buzzer and Home button
- Easy mounting: Front mount, wall mount or retrofit
- MasterBus powered or MasterBus powering by 12 V DC input
- Easy updating through integrated USB
Applications
The EasyView 5 completes any MasterBus system. Applications include yachts, vehicles and stationary systems. Markets include marine, mobile (recreational & professional), infra-structure, offshore, off-grid and industrial markets.
Specifications
- Display:Â 4.5 inch high contrast display with capacitive touch control. Resolution: 480x272 pixels, Color depth: 16 bits
- Languages:Â English, Dutch, German, Spanish, Italian, French, Finnish, Swedish, Norwegian, Danish
- IP degree: IP65 waterproof front
- Power supply:Â MasterBus powered or MasterBus powering through 12/24 V input
- Power Consumption:Â < 160 mW (idle mode)
- Alarm:Â Buzzer integrated
- Connections:Â 2 x MasterBus, USB, 12/24 V auto ranging input for optional external power
- Mounting:Â Front mount, wall mount and MasterView Easy retrofit
- Dimensions, HxWxD:Â 113 x 127 x 43 mm
