![Lenco 101XD Extreme Duty Actuator - 24v - 2 1/4" Stroke - 3/8" Hardware [15063-001]](http://www.boaterstop.com/cdn/shop/files/29129XL.jpg?v=1686351240&width=1000)
Lenco 101XD Extreme Duty Actuator - 24v - 2 1/4" Stroke - 3/8" Hardware [15063-001]
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders placed before 3 PM EST ship the same day
We offer multiple shipping options to ensure you get the part you need at a discount.
Best Way -$11.97
Ground -$14.69
2nd Day Air -$25.89
Overnight -$59.99
In addition, we can ship on your account or via a preferred method upon request.
![Lenco 101XD Extreme Duty Actuator - 24v - 2 1/4" Stroke - 3/8" Hardware [15063-001]](http://www.boaterstop.com/cdn/shop/files/29129XL.jpg?v=1686351240&width=112)
Lenco 101XD Extreme Duty Actuator - 24v - 2 1/4" Stroke - 3/8...
101 XD Actuator- 24 Volt- 2-1/4 Stroke with Mounting Hardware

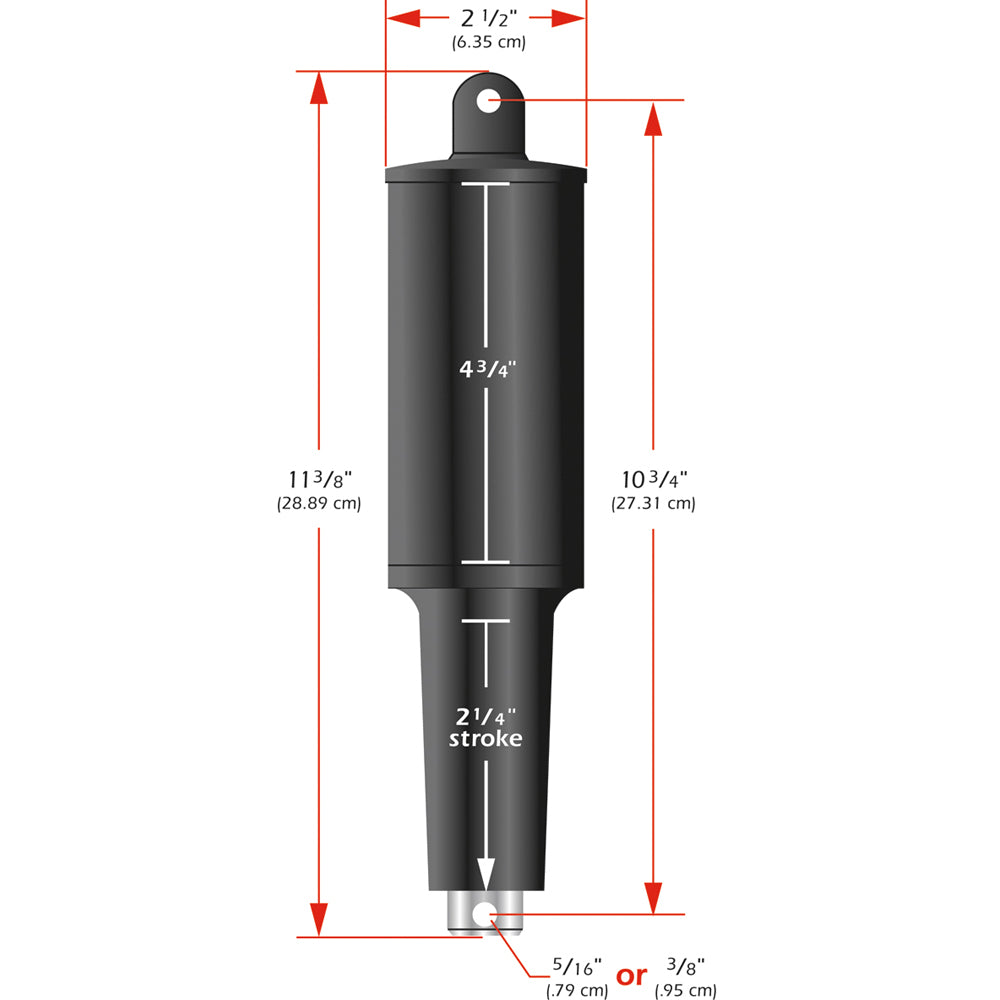

The 101 XD Actuator is used mostly with HD, XD, High Performance and Super Strong tabs. 2.25 stroke. Overall length (tip to tip) is 113/8 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.
Specifications:
- Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
- Stronger top cap and mounting clevis design
- Improved pressure-tight torx screws
- Integrated wiper seal at actuator base
- Molded-in brass thrust bearing design
- Thicker and stronger motor housing wall
- Improved O-Ring design for more consistent seal
- Over-molded cable providing a stronger tighter seal
- Upper mounting bracket with gland seal
Features:
- Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
- Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
- Lenco Actuator connections use waterproof "Plug & Play" Deutsch connectors eliminating the possibility of water intrusion.
- 24 Volt
- 3/8" mounting hardware
- 6 foot cable
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Quick Guide (pdf)
