![Jabsco Sliding Vane Diesel Transfer Pump - 9 GPM - 24V [23870-1300]](http://www.boaterstop.com/cdn/shop/files/77166XL.jpg?v=1686463897&width=1000)

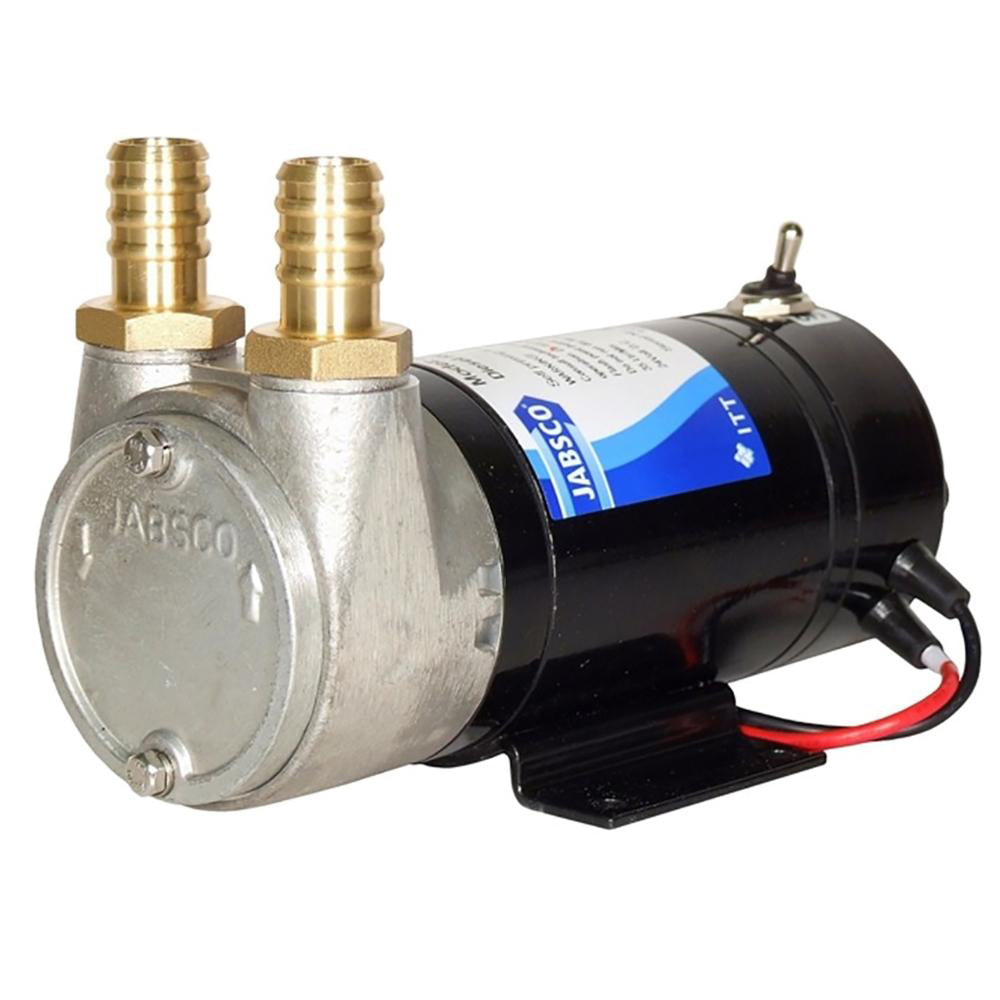

Jabsco Sliding Vane Diesel Transfer Pump - 9 GPM - 24V [23870-1300]
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders placed before 3 PM EST ship the same day
We offer multiple shipping options to ensure you get the part you need at a discount.
Best Way -$11.97
Ground -$14.69
2nd Day Air -$25.89
Overnight -$59.99
In addition, we can ship on your account or via a preferred method upon request.
Sliding Vane Self-Priming Diesel Transfer Pump - 9 GPM & 24v
Designed for refueling small sizes diesel powered vehicles [typical tank sizes up to 200 litres (50 U.S. gallons)] from drums.
Suitable for mounting to the following equipment: Excavators, Cranes, Road rollers (compactors), Pavers, Agricultural machines, Generators, Helicopters.
Suitable for diesel fuel, Kerosene, Paraffin, Hydraulic oils, Oils up to 150 centi Stokes (750 Saybolt Universal) viscosity. .
Features:
- Faster refueling - 35 litres/minute (9.5 U.S.GPM).
- High head capability - 6 meters (19 feet).
- Self priming up to 2.8 meters (9 feet).
- Vibration tested. • IP55 protected motor
Specifications:
- Temperature Range : -30°C to +40°C (-22°F to +104°F)
- Pump Body : Aluminium
- Rotor : Vectra
- Vanes : PTFE Filled Ryton
- Shaft : Steel
- Seal : Nitrile
- Lip Seal Ports : Vertical ½¨ BSP or 19mm hose adaptors (¾¨)
- Motor : 24V permanent magnet, corrosion resistant IP55 protected
- Duty : 25 mins @ +40°C (104°F)
- Current Draw: 7 Amps @ 3m head
- Maximum Current: 10 Amps
Brochure (pdf)
