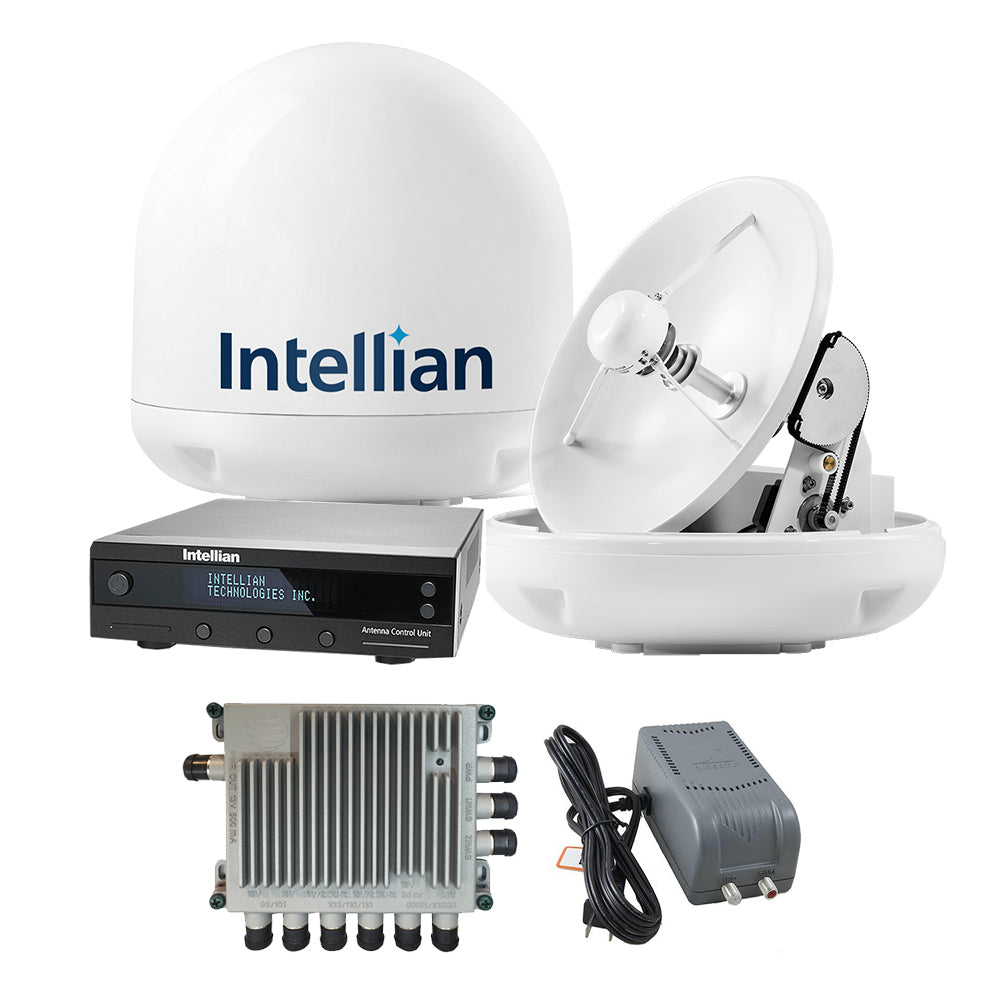

Intellian i3 US System US Canada TV Antenna System SWM-30 Kit [B4-I3SWM30]
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders placed before 3 PM EST ship the same day
We offer multiple shipping options to ensure you get the part you need at a discount.
Best Way -$11.97
Ground -$14.69
2nd Day Air -$25.89
Overnight -$59.99
In addition, we can ship on your account or via a preferred method upon request.
![Intellian i3 US System US Canada TV Antenna System SWM-30 Kit [B4-I3SWM30]](http://www.boaterstop.com/cdn/shop/files/89770XL.jpg?v=1686511430&width=112)
Intellian i3 US System US Canada TV Antenna System SWM-30 Kit [B4...
i3 US System US & Canada TV Antenna System & SWM-30 Kit
i3 US System US & Canada TB Antenna System
The Intellian i3 provides superior tracking performance compared to antenna systems of a similar size. With its stylish dome, the i3 is ideal for boats over 8m (25ft). The i3’s high signal gain makes it the best performing 37cm (15in) antenna system available today.
Features:
- Built-in Wi-Fi enables one touch diagnostic and updates from your PC or iOS deviceÂ
- Auto satellite switching function from your remote control
- Compatible with leading satellite TV service providers around the worldÂ
- 60° per second turn rate ensures signal tracking at high speeds and in rough seas
- Travel further North or South with an extended elevation range of 10° to 80°Â
- Built-in GPS enables faster signal acquisition
- Simplicity of design, no external compass or rate sensors requiredÂ
- Built-in HD module for Ku-band HD TV reception
- Receiver Required - Sold Separately
SWM-30 Kit
The latest and greatest external multi-switch from DIRECTV feeds up to 26 tuners in two banks of 13 for easy wiring. Supports 4K and the use of the international WorldDIRECT dish. Also included is a 29-volt power inserter that supports the SWM-8 or SWM-16 multi-switch remotely through a coax cable. It can operate from the power passing port of a splitter, or on the SWM-16, which can be run from the separate PWR port.
Features:
- Supports two banks of 13 tuners (no MoCA/MRV crossover)
- Replacement for SWM-8, SWM-16, and SWM-32 multi-switches
- Compatible with previous generation Slimline dishes
- Compatible with Genie and Genie 2
- For use with WorldDIRECT dish, use WD-DIPLEXER-09 diplexer sold separately
- For use with 4K installations, use SL5RB or SL3RBAH LNB (6 coax cables to the SWM)
- Output level -25dBm
- Powers any coax-powered device up to 13V, 500mA
- Requires SWM-capable receivers (H21 or higher, D12, HR20 or higher, HS17)
- Can be used for the SWM-8 and SWM-16
- Outputs: 1 IRD & 1 SWM
- SWM Port Output: 29V
Specifications:
- Antenna Dish Diameter: 15"
- Dome Weight (lbs): 19.8 lbs
- Service Coverage: DirecTV, Dish
- Voltage - Input Range (Volts): 9-30v
- Box Dimensions: 5"H x 11"W x 17"L WT: 36.4 lbs
