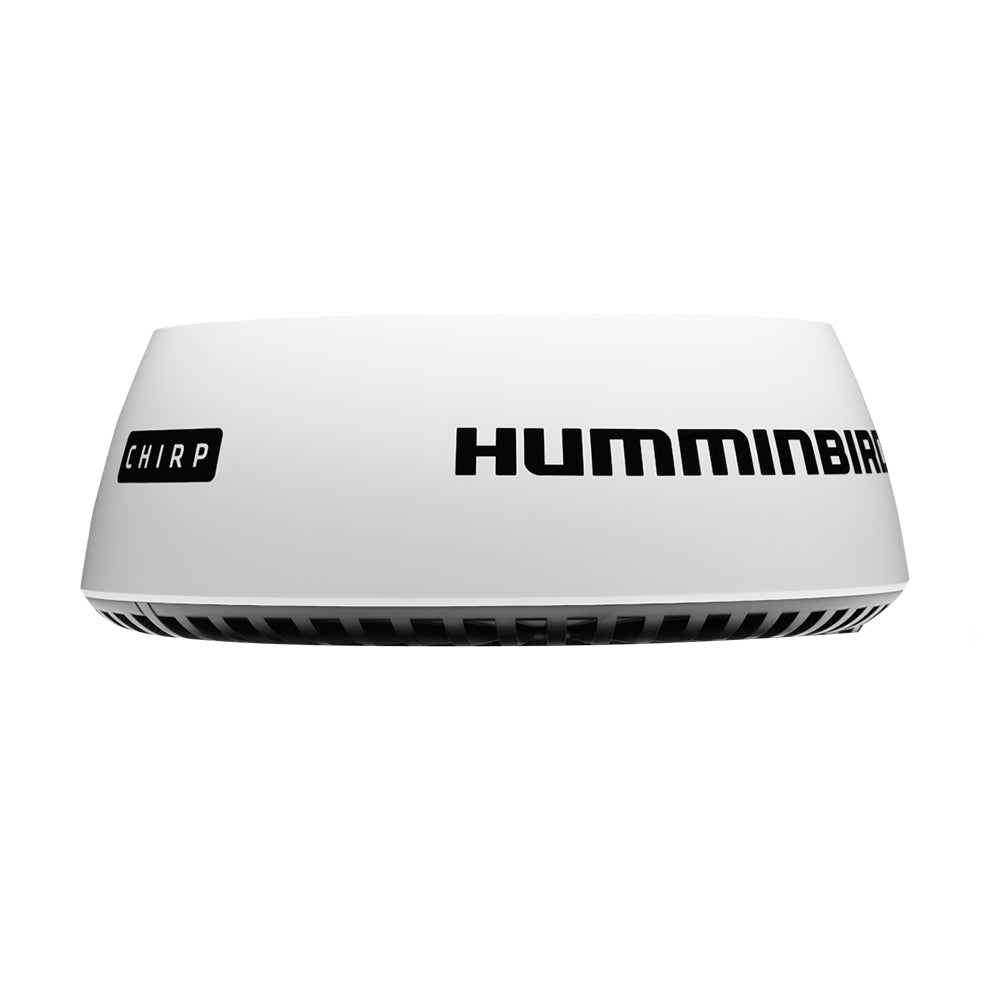

Humminbird HB2124 CHIRP Radar
HB2124 CHIRP Radar
Compatible with select networking HELIX models and ONIX, Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar. It delivers superior RADAR imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definiton.
Features:
- Antenna Dimension - 21" Enclosed Dome
- Antenna Type - Patch Array
- Peak Power Output - 20W
- Transmit Frequency - 9354 to 9446 MHz
- Beam width (nominal) - 4.9° Horizontal and 20° Vertical
- Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts, Maximum - 31.2 Volts)
- Networking - Ethernet
- Maximum Range Scale - from 1/16 to 24 nautical miles
- Power Consumption - Transmit mode - 17W; Standby Mode - 7W; Sleep Mode - 2W
- Duplexer - Circulator
- Pulse Widths @ 3 dB - 40 ns to 14.7µs
- CHIRP Lengths - 400 ns to 20µs
- CHIRP Bandwidth - Up to 32 MHz
- IF Bandwidth - 26 MHz
- Noise - Less than 4 dB
- Polarization - Horizontal
- Waterproofing - IPX6
- Weight - 12.3 lbs (5.6 kg)
- Compatibility Networking HELIX models and all ONIX models
Specifications:
- Array Size (Inches): 21"
- Box Dimensions: 12"H x 24"W x 24"L WT: 21.2 lbs
- UPC: 082324050169
Owner's Manual (pdf)
