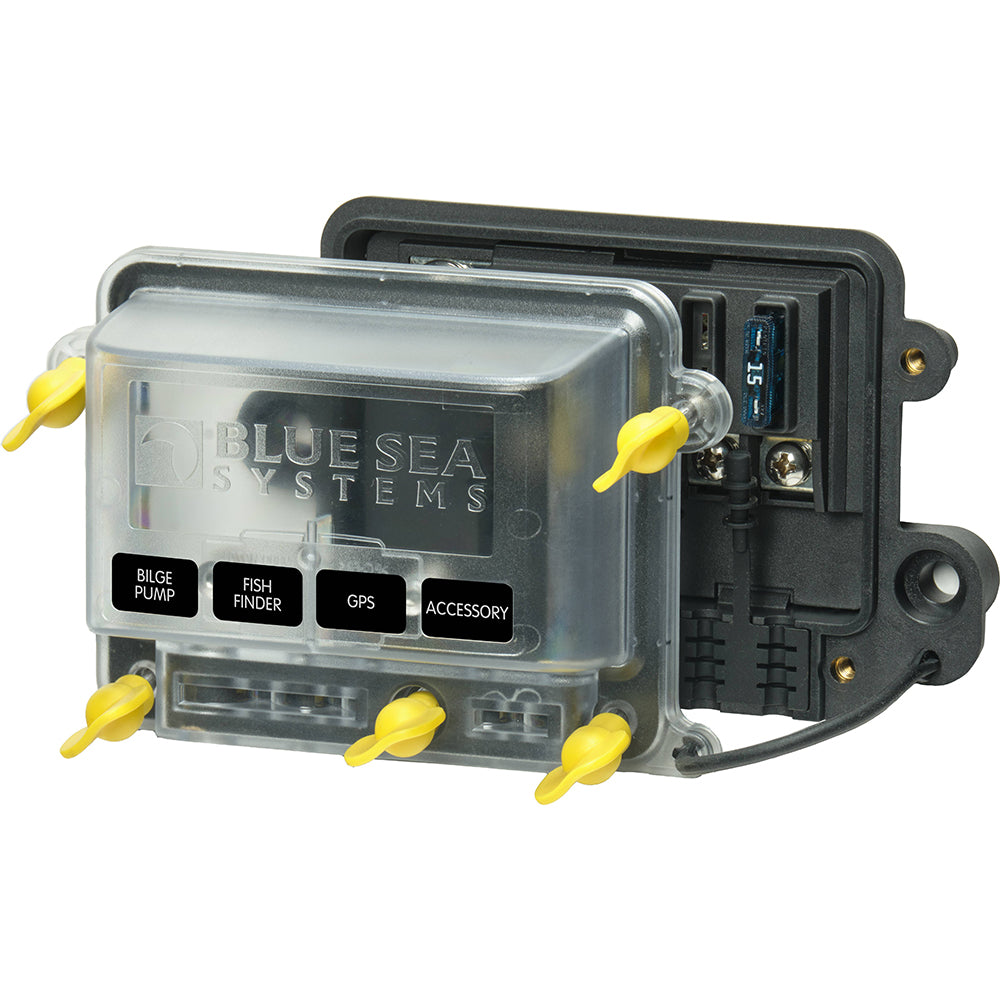

Blue Sea 5056100 - Water Resistant ST-Blade Fuse Block w/Cover [5056100]
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders placed before 3 PM EST ship the same day
We offer multiple shipping options to ensure you get the part you need at a discount.
Best Way -$11.97
Ground -$14.69
2nd Day Air -$25.89
Overnight -$59.99
In addition, we can ship on your account or via a preferred method upon request.
Blue Sea 5056100 - Water Resistant ST-Blade Fuse Block w/Cover [505...
5056100 - Water Resistant ST-Blade Fuse Block with Cover
This Blue Sea fuse block provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint. Now with wing screws for toolless access.
Features:
- Water-resistant design with a standard ring or spade-type terminals
- Allows for simple wiring with standard tools
- Accepts a wide range of wire sizes
- Includes 3 wire plugs to maintain a water-resistant rating if less than 4 loads are required
- Accepts ATO and ATC fast acting blade fuses
- Accepts ATO/ATC-Style Low Profile Circuit Breakers
- Nests with other ST-Blade water-resistant fuse blocks and water-resistant 100A busbars to reduce wire
- 5056100 meets ABYC/USCG insulation requirements
- Tin-plated copper busses and fuse clips
- Includes four write-on circuit labels
- Spare fuse and fastener storage in cover
- Wing screws designed for tool-free installation of cover to meet ABYC compliance
Technical Specifications:
- Cover - yes
- Maximum Voltage - 32V DC
- Bus Material - Tin-plated Copper
- Mounting Holes - Accepts 1/4" (6mm) screws
- Terminal Screws - 4 x # 8-32 with captive star lock washer
- Wire Size - Input - (1) 8 AWG to 4 AWG
- Wire Size - Load - (4) 16 AWG to 10 AWG
In the Box:
- 5056100 Busbar
- Instruction Manual
*Sold as an Individual
Quick Guide (pdf)
