![Blue Sea 1218 12V DC Main + 19 Positions / 120V AC Main + 6 Positions [1218]](http://www.boaterstop.com/cdn/shop/files/57245XL.jpg?v=1686402449&width=1000)

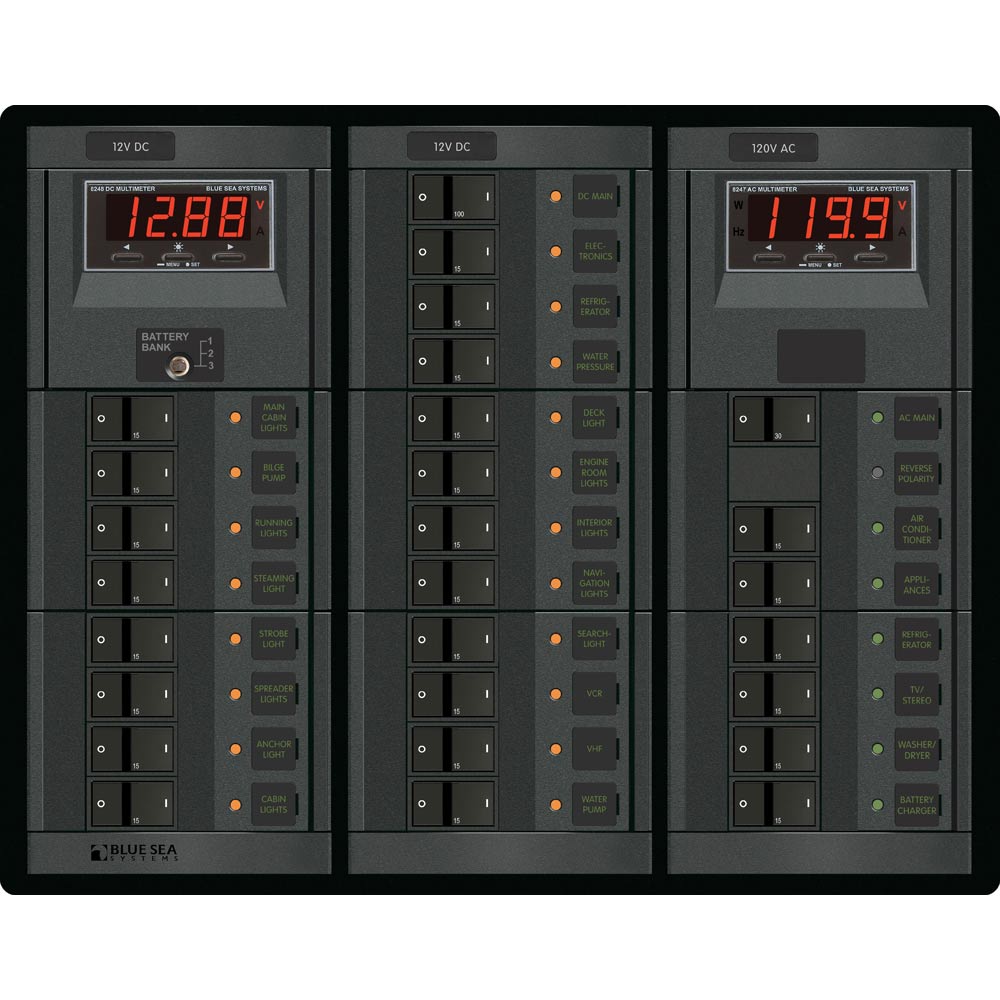

Blue Sea 1218 12V DC Main + 19 Positions / 120V AC Main + 6 Positions [1218]
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders placed before 3 PM EST ship the same day
We offer multiple shipping options to ensure you get the part you need at a discount.
Best Way -$11.97
Ground -$14.69
2nd Day Air -$25.89
Overnight -$59.99
In addition, we can ship on your account or via a preferred method upon request.
![Blue Sea 1218 12V DC Main + 19 Positions / 120V AC Main + 6 Positions [1218]](http://www.boaterstop.com/cdn/shop/files/57245XL.jpg?v=1686402449&width=112)
Blue Sea 1218 12V DC Main + 19 Positions / 120V AC Main + 6 Positio...
12 Volt DC Main + 19 Positions/120 Volt AC Main + 6 Positions
Features:
- 360 AC Panels may be equipped with main breakers up to 100A per pole to suit the application
- AC and DC panel amperage determined by AC Main and DC Main circuit breakers
- Modular manufacturing design reduces manufacturing time
- Interchangeable modular design eliminates custom engineering and metal fabrication
- Flexible modifications
- Flexible panel orientation (panels without meters)
Specifications:
-
Positions:t6-AC / 19-DC
-
Nominal Voltage:t120V AC / 12V DC
-
Height:t10.75" (273.05mm)
-
Width:t13.63" (346.2mm)
-
Depth:t4.00" (101.6mm)
- Weight:t12.80lb (5.81kg)
Includes:
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 4206 - Basic AC Label Kit - 30 Black Square Labels [LABEL]
(6) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A (AC Branch)
(1) - 7414 - A-Series Flat Rocker Circuit Breaker - Double Pole 30A (AC Main)
(1) - 8247 - AC Digital Multi-Function Meter with Alarm (AC Meter)
(19) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A (DC Branch)
(1) - 7549 - C-Series Flat Rocker Circuit Breaker - Single Pole 100A (DC Main)
(1) - 8248 - DC Digital Multi-Function Meter with Alarm (DC Meter)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- AC/DC: Both
- Box Dimensions: 9"H x 12"W x 18"L WT: 11.4 lbs
- UPC: 632085012182
Quick Guide (pdf)
Owner's Manual (pdf)
