BEP Emergency Parallel Switch (12/24V- 500A)

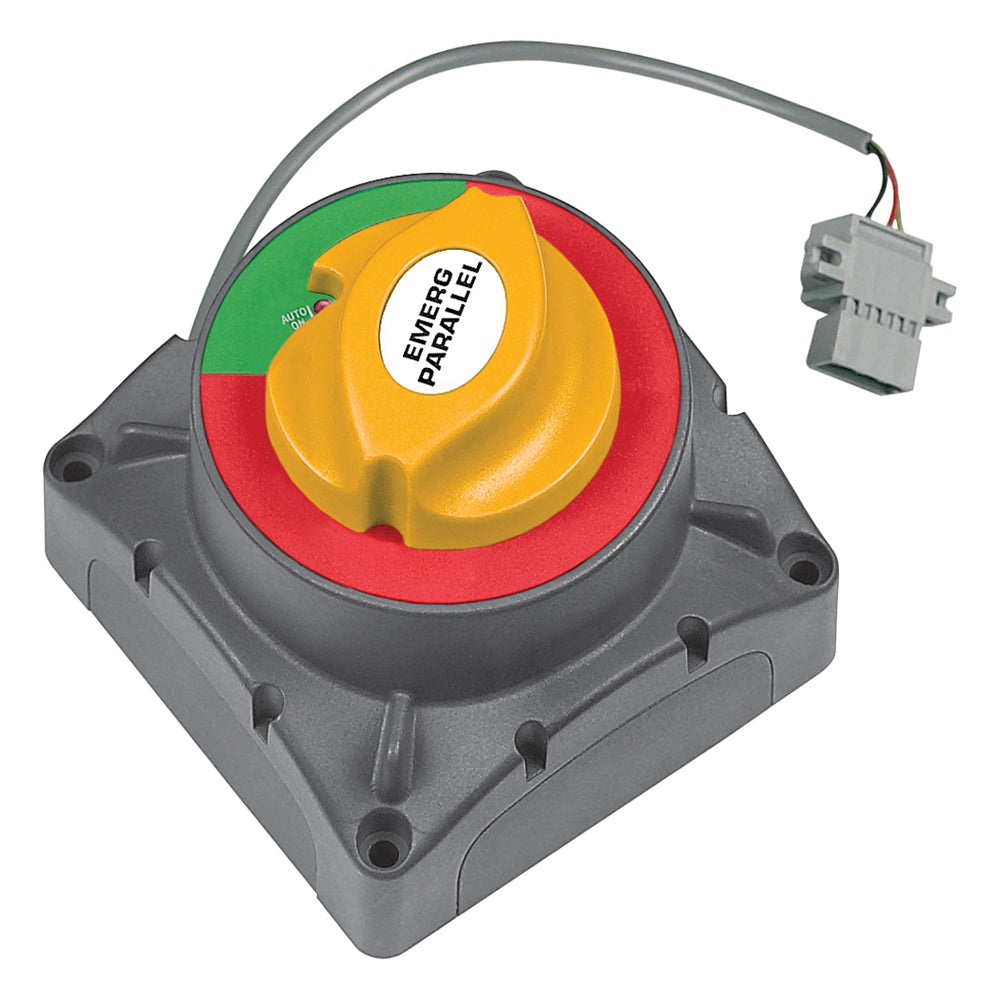

Emergency Parallel Switch  - 12/24V - 500A
This Motorized Switch offers remotely activated, high current, emergency parallel connection suitable for emergency starting of large engines (up to 2500A for 10 seconds). Â
The emergency parallel functionality is conveniently operated via a momentary button on the dash, which when activated, will parallel the batteries for 10 minutes. Â Once the 10 minutes has passed, the switch turns off, removing the risk of start batteries becoming flattened following a parallel switch being inadvertently left on. Â
Designed and constructed for the harsh marine environment, utilizing tinned copper conductors, stainless steel nuts, and high temperature, fiber reinforced plastics to ensure longevity. Â The units are ignition protected, provide On/Off switching operation, and may be recessed or surface mounted.Â
Features:
- 12/24 volt operation (both battery banks must be same voltage)
- Manual override option
- 10 minute remotely activated emergency parallel function (no voltage sensitive function)
Technical Specifications:
- Volts - 12/24V
- Rating - 500A
- Dimensions (L x W x H) - 4" x 4" x 4.3"
In the Box:
- Parallel SwitchÂ
- Instruction manual
*Sold as an IndividualÂ
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Lockable: No
- Positions: 2
- Continuous Amperage: 500
- Box Dimensions: 5"H x 5"W x 5"L WT: 2 lbs
- UPC: 843687004721
Owner's Manual (pdf)
Brochure (pdf)
