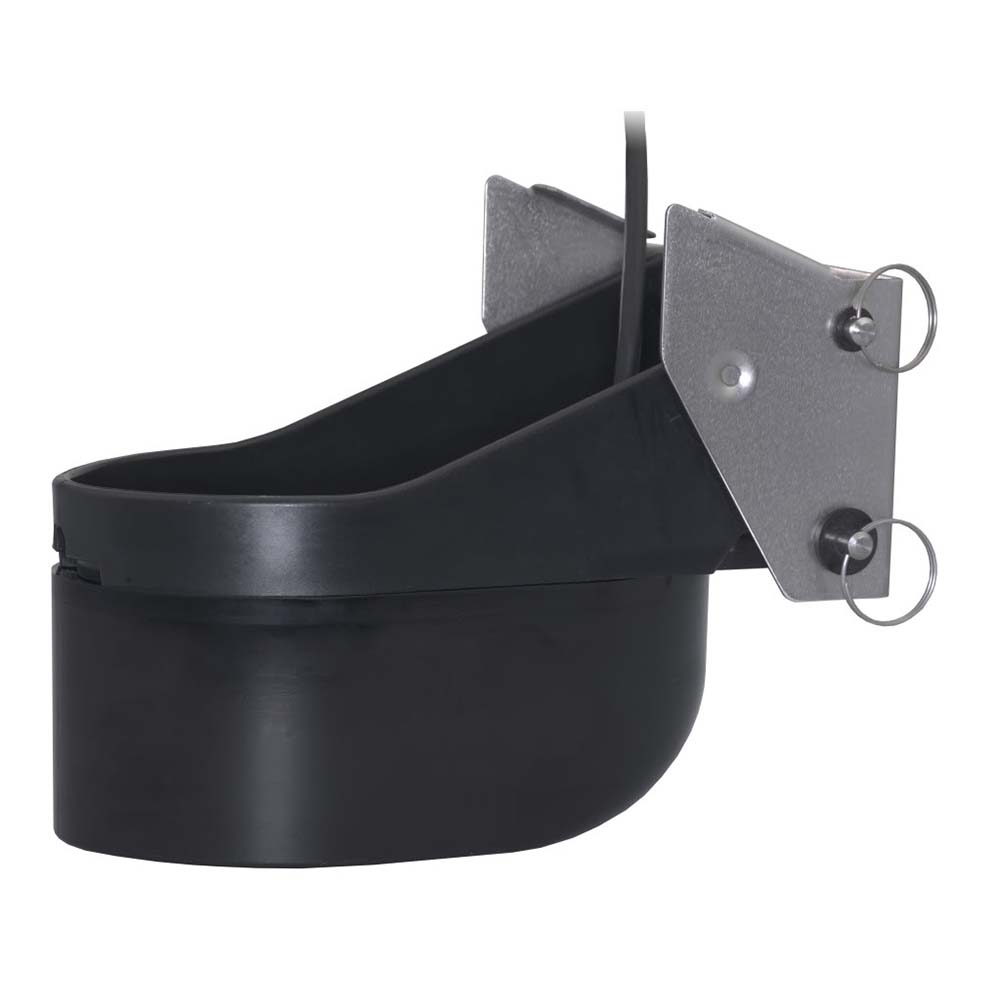

TM265C-LM-12F Transom Mount Transducer with 12-Pin Connector for Furuno TZT12F, TZT16F & TZT19F
Rely on Airmar's broadband transducers for the ultimate fishing mission! Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town. Traditional marine fishfinders operate at discreet frequencies such as 50 kHz and 200 kHz, use relatively short-duration pulses, and use narrowband sonar transducers. In contrast, CHIRP uses a precise sweep pattern of many frequencies within a long-duration transmits pulse from a broadband transducer, so the equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine fishfinder.
Specifically designed for smaller boats (25'-40'), the TM265C-LM CHIRPS across the following bandwidths:
Low & Medium-Frequency (LM)
Low—Chirps from 42 kHz to 65 kHz, 25° to 16° beamwidth
Medium—Chirps from 85 kHz to 135 kHz, 16° to 11° beamwidth
Medium-frequency benefits include the ability to sound deeper than the high-frequency, along with better target resolution than the low-frequency
Features:
- 8-Internal, Broadband Ceramic Elements
- Depth & fast-response water-temperature sensor
- Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking)
- Operating frequencies:
- Low—Chirps from 42 kHz to 65 kHz
- Medium—Chirps from 85 kHz to 135 kHz
- Beamwidth (Adjustable):
- Low—25° to 16°
- Medium—24° to 16°
- 10 m (33’) cable
- The depth and fast-response water-temperature sensor
- 12 Pin Connector for use with Furuno TZT12F and TZT16F Displays
- Urethane transducer housing and stainless steel mounting bracket
- Boat Size: 8 m to 12 m (25’ to 40’)
- Hull Type: Fiberglass, wood, or metal
- Exclusive Transducer ID
Specifications:
- Cable Length (Feet): 30ft
- Chirp: Low/Medium
- Imagining: Standard
- Mounting Style: Transom
- Pins: 12
- Speed Included: No
- Temperature: Yes
