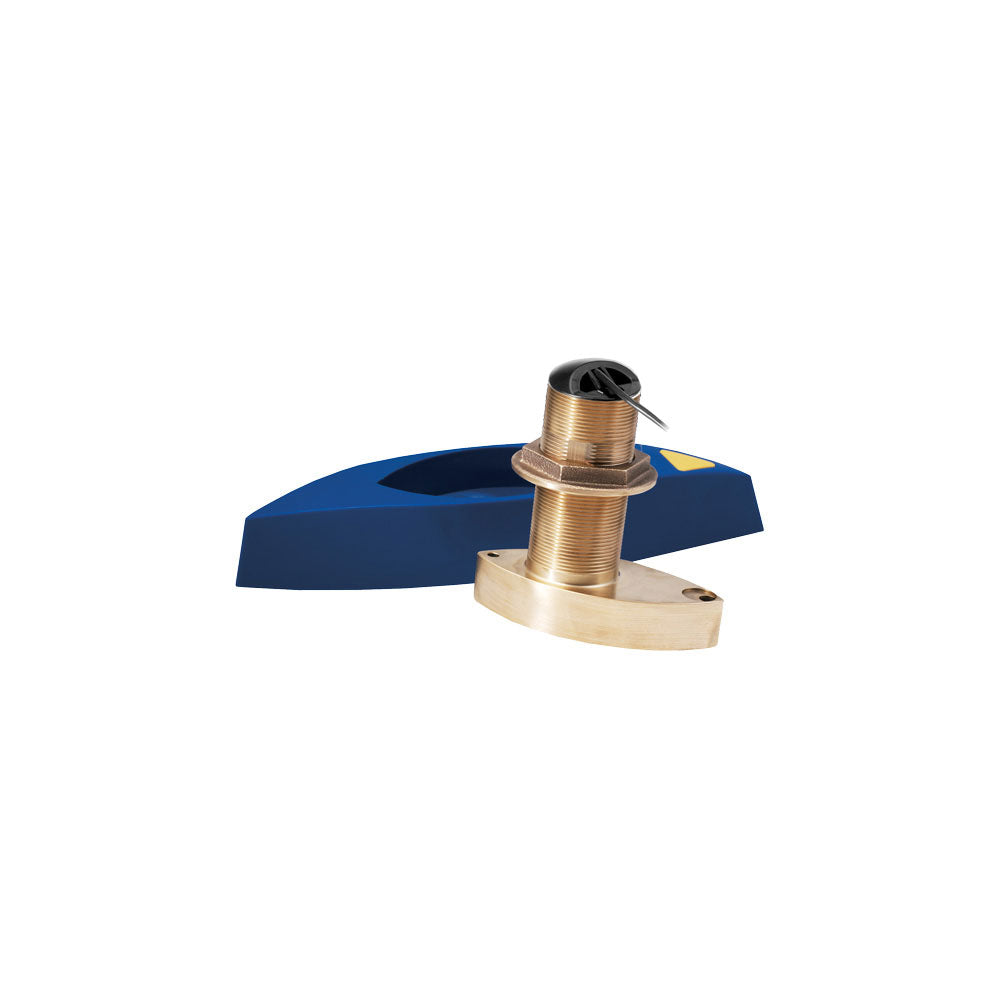

B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work with Simrad & Lowrance
Rely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 85 kHz of total bandwidth in just one installation, saving customers time and money.
A Thru-Hull Chirp transducer perfectly suited for smaller fishing boats, the B765L/M Chirps across the following bandwidths:*L/M -Low Frequency 40-75 kHz, Medium Frequency 80-130 kHz
* Please Note: The low frequency operating band is 300 W. The medium frequency operating band is 600 W.
Features
- Depth & fast-response water-temperature sensor
- Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
- Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth
- 85 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidth
- All the advantages of the larger Thru-Hull Chirp transducers, suitable for smaller boats
- Bronze transducer housing with High-Performance Fairing
- Boat Size: Up to 9 m (30’) and above
- Hull Type: Fiberglass or wood
- Exclusive Xducer ID® technology
- Hull Deadrise: Up to 24° with a fairing
- Acoustic Window: Urethane
- Weight: 2.5 kg (5.5 lb)
Specifications:
- Temperature: Yes
- Speed Included: No
- Pins: Bare Wires
- Mounting Style: Thru-Hull
- Imagining: Standard
- Chirp: Low/Medium
- Cable Length (Feet): 40'
- Box Dimensions: 4"H x 12"W x 16"L WT: 7.7 lbs
Brochure (pdf)
