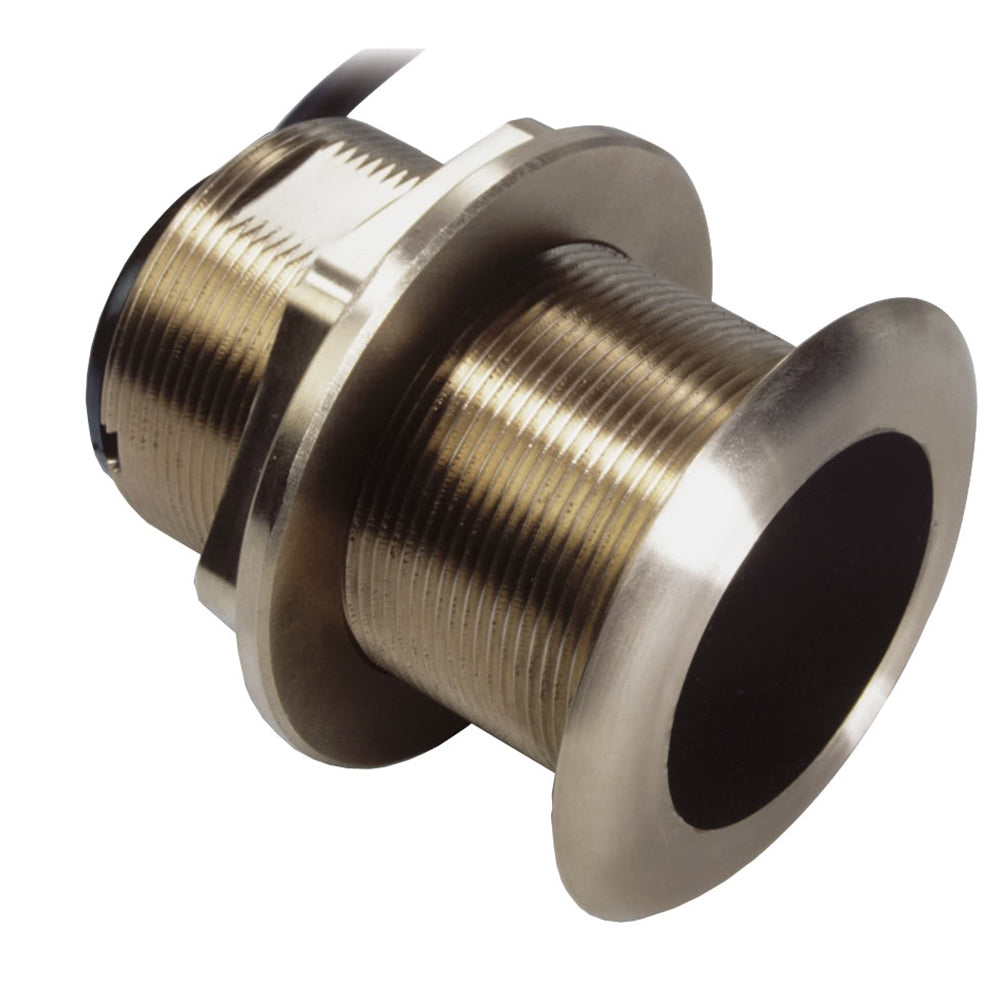

B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 12º
The bronze B60-12º provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5mm (3/16") extending outside of the hull.
Features:
- Engineered for center-console and trailered boats
- Low-profile protrusion below the hull
- No affect on your boats running performance
- Arrow on cap points toward keel when installed
- Built-in temperature sensor
- Boat Size: Up to 8M (25')
- Bronze transducer housing
Specifications:
- Weight: 1.4 kg (3 lb)
- Hull Deadrise: Up to 24°
- Acoustic Window: Urethane
Specifications:
- Temperature: Yes
- Mounting Style: Thru-Hull
- Pins: 7
- Box Dimensions: 4"H x 8"W x 11"L WT: 3.55 lbs
- UPC: 801769003772
Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
